Th Sensor

Temperature, Humidity Wi-Fi Trasmitter Sensor, 802.11 b/g/n, Bluetooth
Ordering Code: Sol-TH-B2-S01-S [add_to_cart sku=Sol-TH-B2-S01-S]

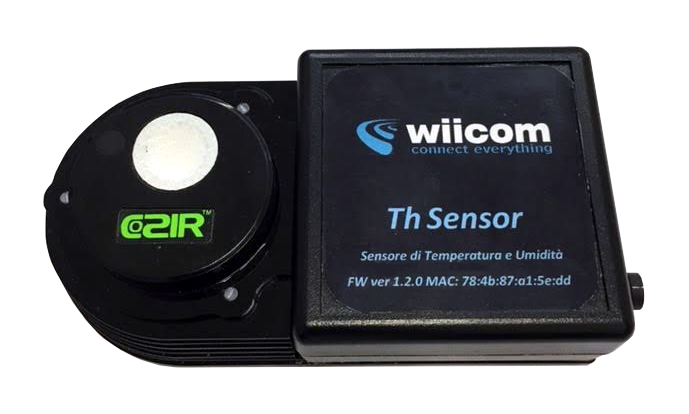

sensoreTh Sensor
is the new Wiicom WiFi sensor that detects temperature, humidity levels in a certain place.

With Th Sensor it’s possible to monitor the quality of the air in the environment thanks to a wireless solution.

The sensor is able to send the collected data to a local server or transfer them via Bluetooth.

alimentatore Sensore CO2

Th Sensor is supplied with 9V power supply. It’s equipped with the low consumption Sensirion SHT21, a temperature and humidity sensor.

Th Sensor stores the environmental values on own memory that can be accessed using a web interface. Then the sensor is self-consistent.

Finally, the system SenseLogger/SenseCloud released along Th Sensor allows  to store the sensor data and view them with various interfaces to other systems remotely.

Humidity measurement range
0 to 100 %RH
Temperature measurement range -40 °C to +85 °C
Humidity Accuracy
+/- 3.0 %RH
 Temperature accuracy  +/-0.3 °C
Humidity Repeatability
+/- 0.1 %RH
Temperature Repeatability
+/- 0.1 °C

WLAN - Bluetooth Functions Ad-hoc and infrastructure modes, Bluetooth 4.0 Security Protocol WEP, WPA and WPA2-PSK
Network Standard Support IEEE 802.11b/g/n dual-band (2.4Ghz and 5Ghz) Network Protocols TCP, IPv4, ARP, ICMP
RF Frequency Band 2.4 and 5.0 GHz (integrated antenna)
RF Data Rates 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps Supply Voltage 9 Vdc 1A through power supply 220Vac to 9Vdc
Dimensions
132 x 34 x 67 mm (L x W x P)
Behavior
ABS
