PWR-F-RS485-B: Boxed Converter RS485 to Wi-Fi

PWR-X-RS485-Bx

802.11 b/g/n Wi-Fi Module OEMs, Tx-Rx, Client / Server type, RS485 transceiver, led Wi-Fi flashing, Reset button, ABS box

Ordering Code: PWR-F-S04-B [add_to_cart sku=PWR-F-S04-B]
Ordering Code: PWR-F-S04-B9 [add_to_cart sku=PWR-F-S04-B9]

Ordering Code: PWR-E-S04-B [add_to_cart sku=PWR-E-S04-B]
Ordering Code: PWR-E-S04-B9 [add_to_cart sku=PWR-E-S04-B9]

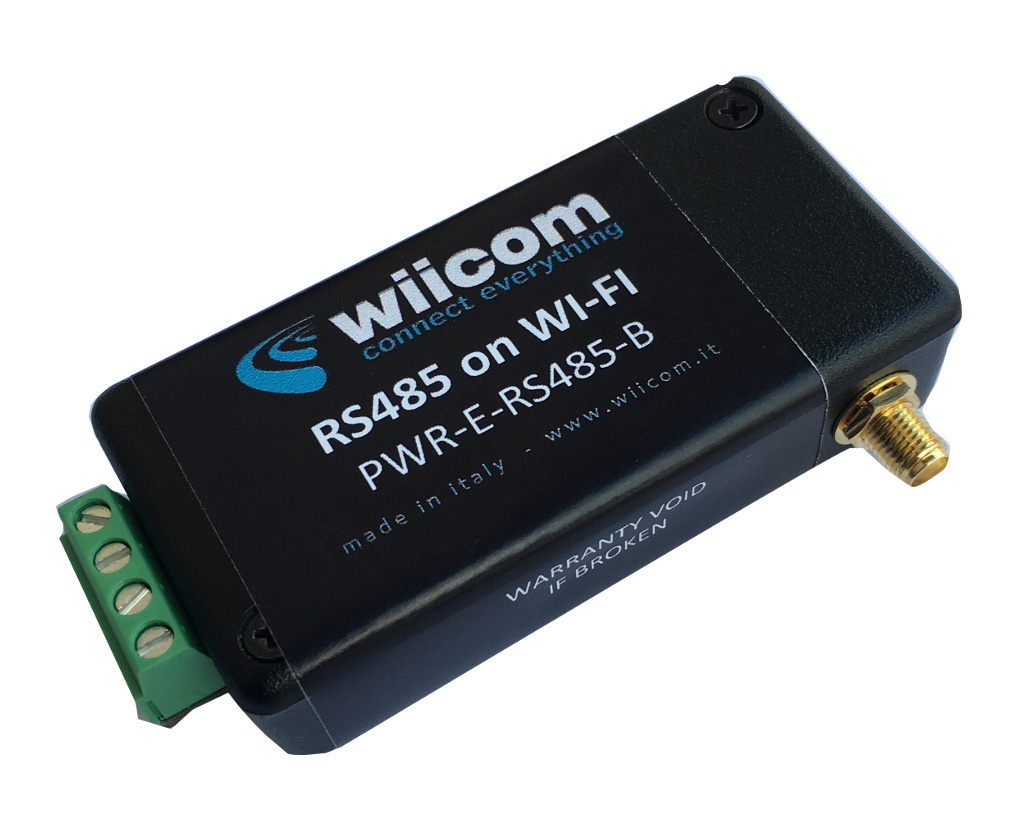

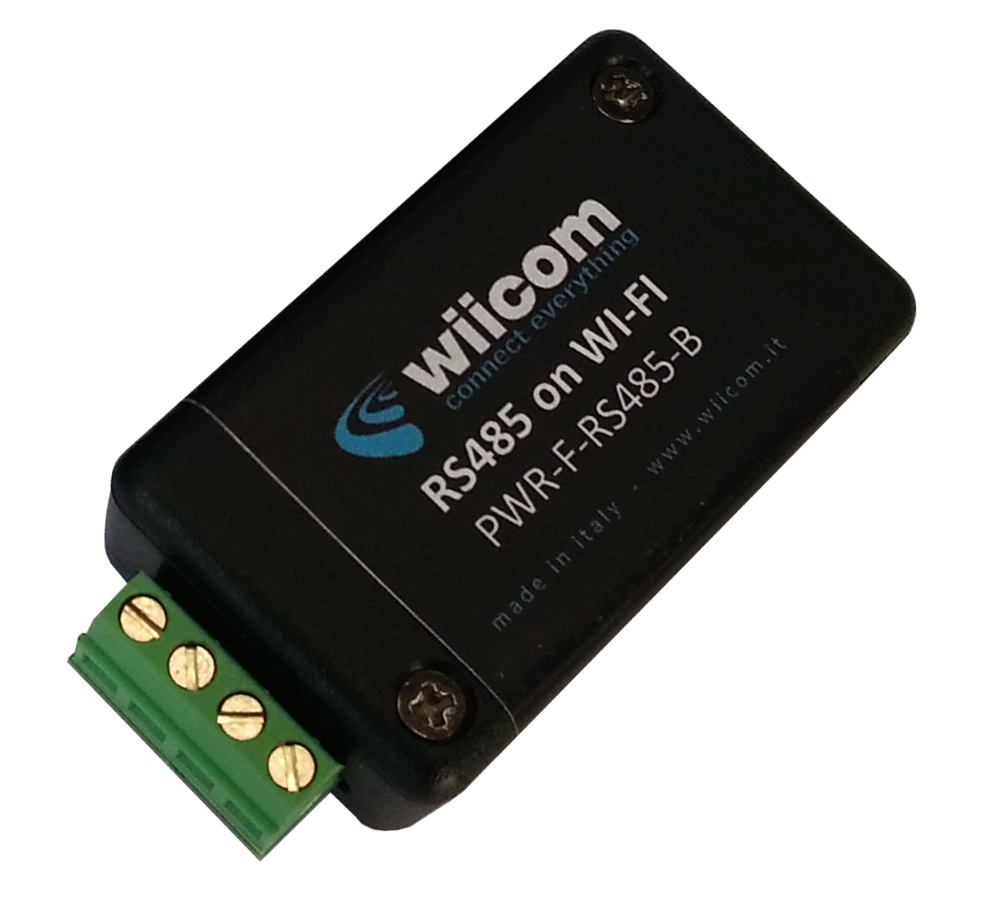

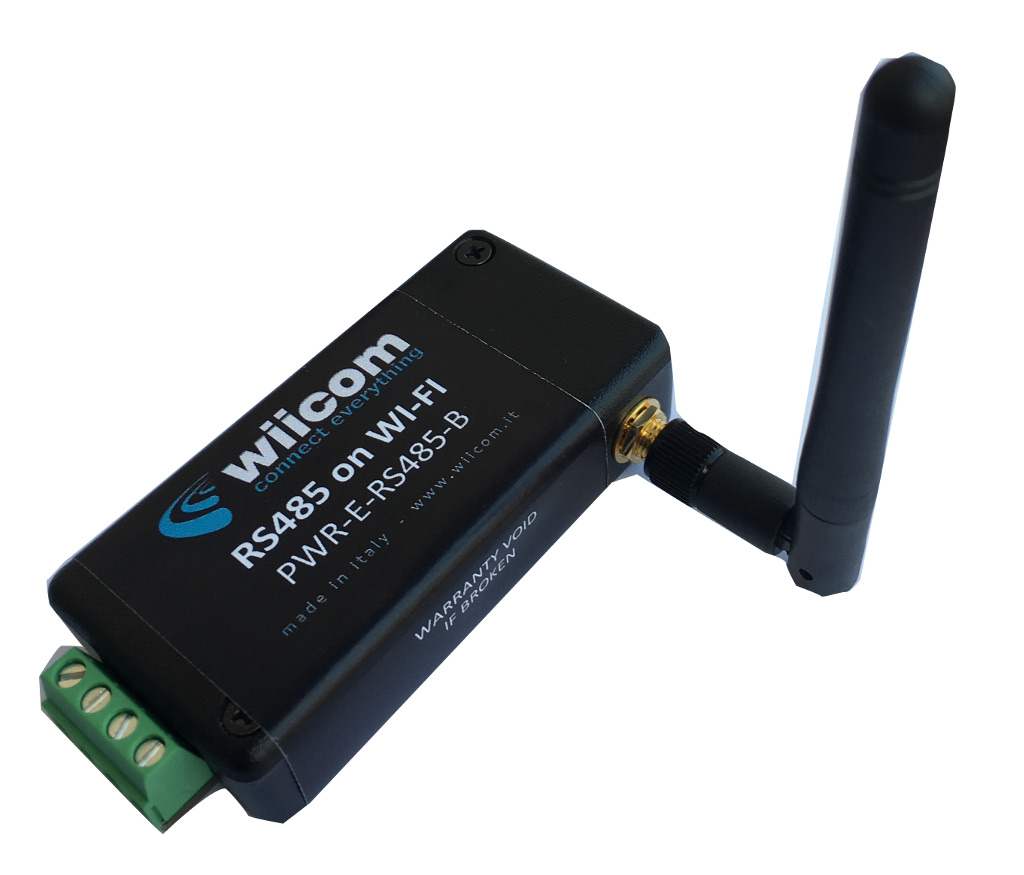

PWR-X-RS485-Bx is a RS485 to Wi-Fi Converter. It is a plug-and-play Wi-Fi boxed module.

PWR-X-RS485-Bx is a client / server type Wi-Fi module: this means that it is able to autonomously connect to a server, also public, and communicate with it. It can simulate a wire cutting between two devices used combined with another PWR-X-RS485-Bx module.

Like other Wiicom’s modules it permits ad hoc mode and infrastructure operation mode.

TRANSCEIVER AND POWER SUPPLY

Wiicom supplies a solution for the transceiver needs that combines powering and interfacing. PWR-X-RS485-Bx is equipped with a RS485 transceivers to communicate with the host.

In addition it can ben supplied with a voltage between 7 and 28VDC, for an industrial and all-day use.

CLOUD READY

PWR-X-RS485-Bx client/server versions are able to connect directly to many servers, also with public ips, and start a communication with them. In addition they are able to make a connection with a Cloud service, like Wiicom Sense Cloud.

NO SOFTWARE NEEDED

The PWR-X-RS485-Bx modules are immediately ready to be used. Thanks to Wiicom configurator software, available on wiicom website, user can define all Wi-Fi network settings.

There’s no need to develope or modify any software on the host board.

ALSO WITH DB9 CONNECTOR

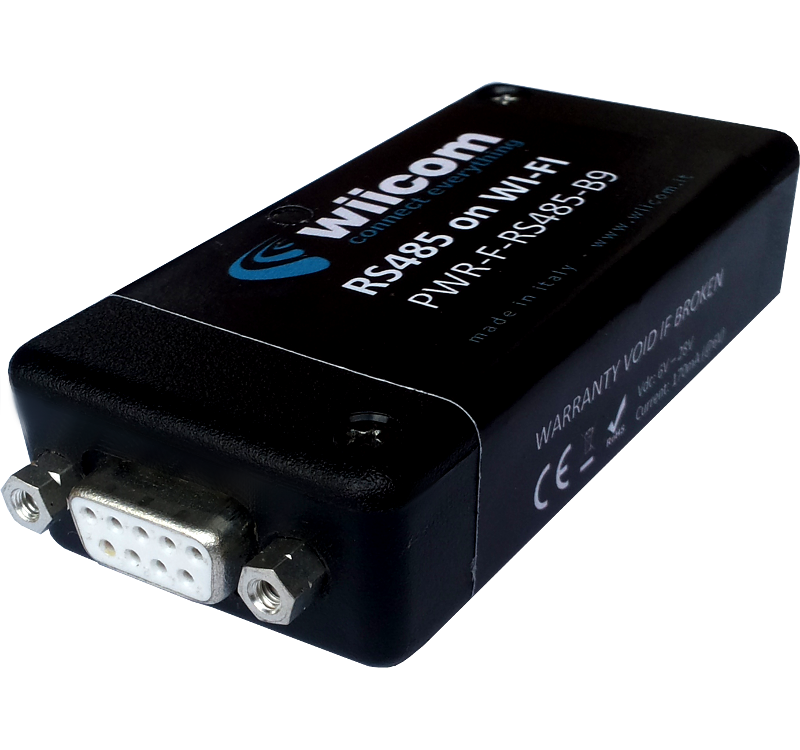

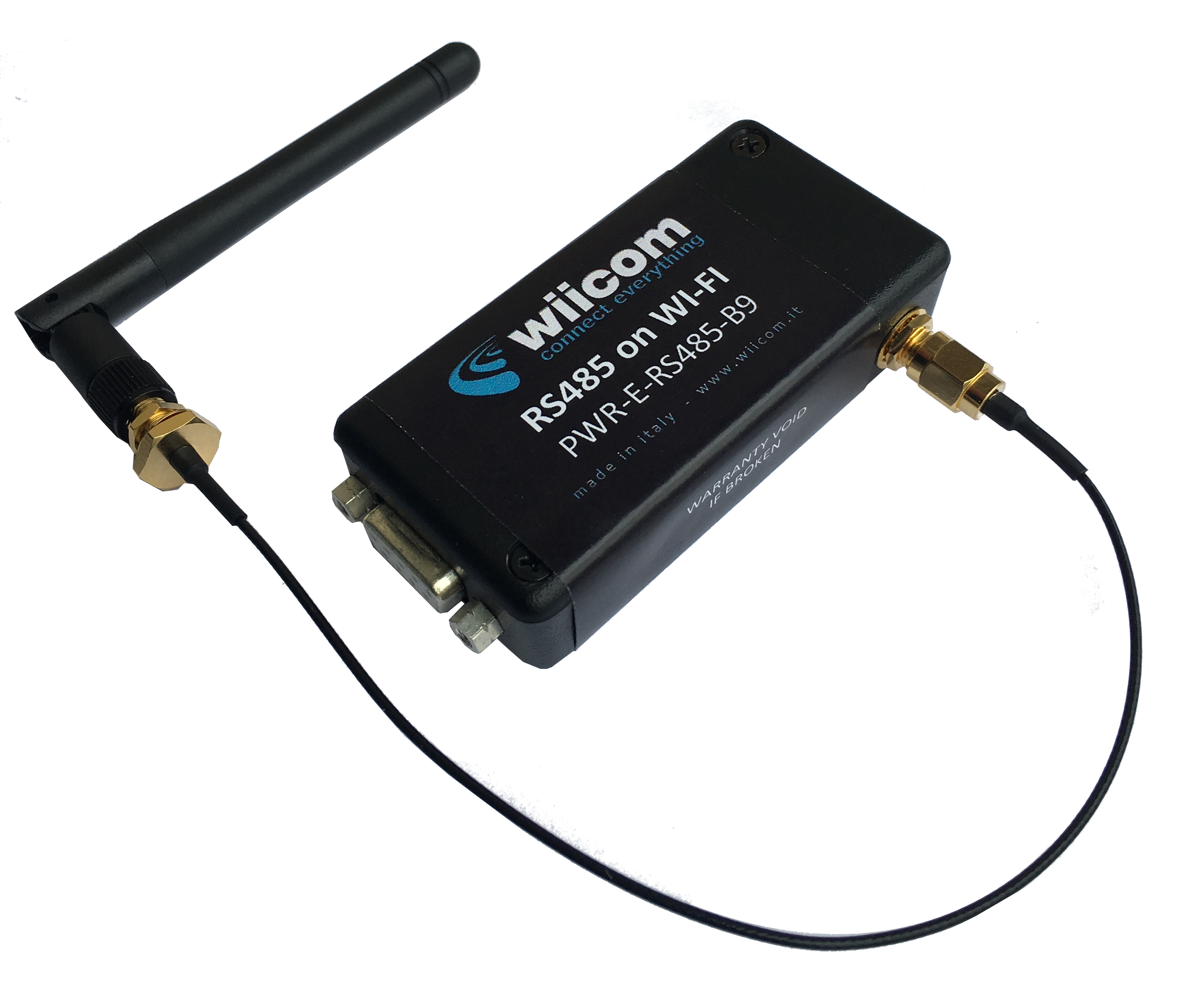

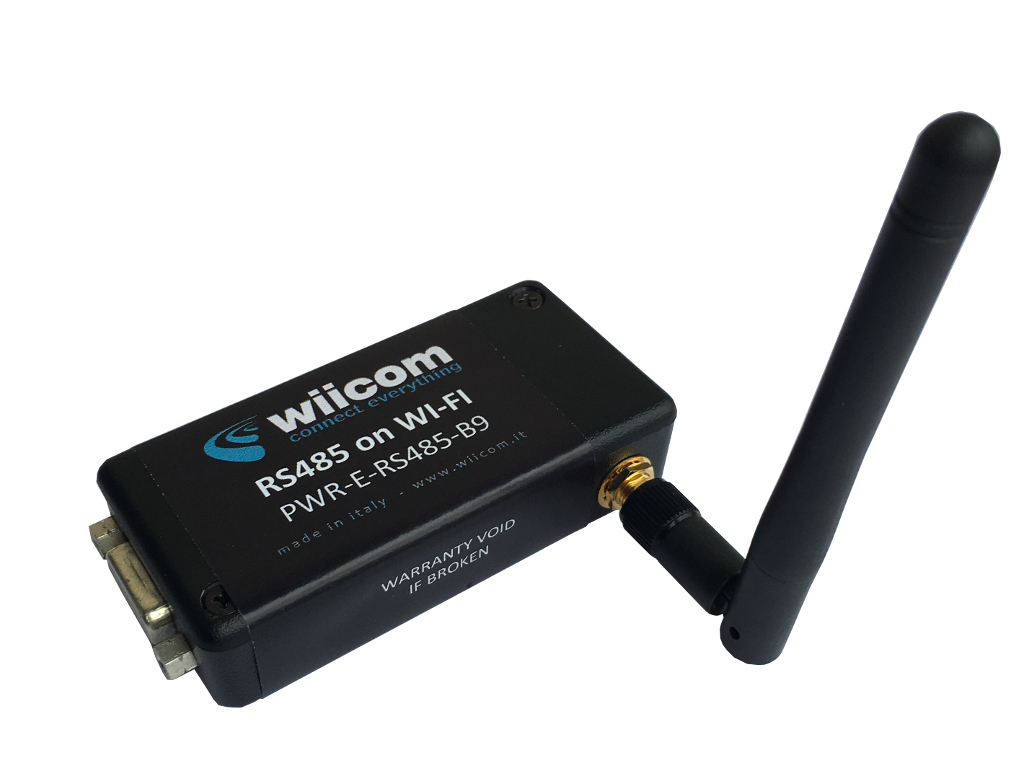

The PWR-X-RS485-B9 is the boxed module for RS485 with a DB9 female connector.

DB9 cables for connection and power for Wiicom boxed modules are available.

They are suitable for connecting Wiicom DB9 boxed modules to user’s devices.

Data Interface	Direct transmission up to 2.5 Mbps (without overhead)	RF Frequency Band	2.412 - 2.484 GHz (integrated antenna)
Electrical Compatibility	TTL Compatible 5V, +- 15KV ESD
WLAN Functions	Ad-hoc and infrastructure modes	Security Protocol	WEP, WPA and WPA2-PSK
Network Standard Support	IEEE 802.11b/g single stream n	Network Protocols	TCP, IPv4, ARP, ICMP
RF Output Power	15-17 dBm	Operating Temperature	-40 to + 85 °C
RF Data Rates	802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps	Supply Voltage	7 - 28 Vdc
Dimensions	68 x 34 x 20 mm (B), 84 x 40 x 20 mm (B9)	Consumption	RX = 56mA, TX = 160mA (@7V)
