Bridge-868-WiFi-Kit

Bridge 868 MHz, 2.4 MHz – 802.11 b/g/n, direct bridge, dual band

Ordering Code: SOL-868-KIT-S01-S

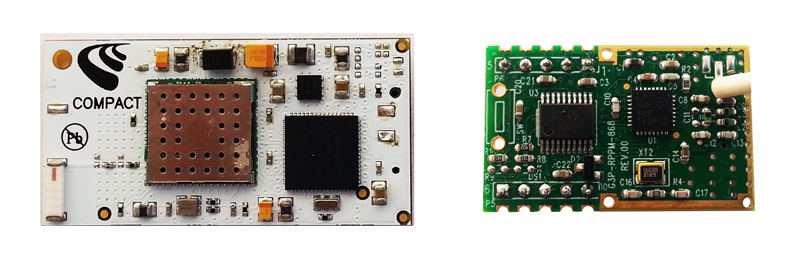

868bridge-Wifi-KitThe Bridge-868-WiFi-Kit is a bundle designed to create a bridge between a Wireless 868MHz network and an 802.11 b / g / n Wi-Fi network. Kit is composed by:

  • 1 Compact-S-UART module with a custom firmware
  • 1 G3P 868MHz Module
  • 1 Kit-Power-G3p
  • 1 power cable

READY IN FEW STEPS

Compact-S-UART module is immediatly ready to create a bridget between the two networks. The communication is made by UART direct: all data in the 868MHz network will be propagated to Wi-Fi network and vice versa. Thanks to Kit-Power-G3p, the connection to Wi-Fi module is quick and easy. Just power on the module with a voltage between 5V and 24V and data will be immediately available over Wi-Fi G3p module.

TRANSPARENCY

The strength about this connection is transparency. The remoting of the G3p module through Wi-Fi module is completely direct and doesn’t have any type of constrains.

Sensor Properties

Coming soon...

RF Wi-Fi Characteristics

WLAN Functions Ad-hoc and Infrastructure modes RF Output Power 15-17 dBm
Network Standard Support  IEEE 802.11b/g single stream n RF Frequency Band 2.412 - 2.484 GHz (integrated antenna)
RF Data Rates 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps Security Protocol WEP, WPA and WPA2-PSK

POWER Supply

Voltage 5V
Sensor supply Current, IDD in measuring Minimum 200uA, typical 300uA, max 330 uA Power Consumption RX = 56mA, TX = 160mA (@5V)

Thanks to Wiicom configurator software, available on this website, it can be possible to configure all Wi-Fi network parameters over Compact-S-UART module and all settings related to G3P module.
