Automotive Wi-Fi

WIICOM Wi-Fi modules are wireless devices that directly provide an interface for data transfer in automotive sectors.

They integrate an RF transceiver with power amplifier, a frequency reference and an antenna in hardware.

In automotive our modules are able to transfer on the Internet (connection with access-point) or personal device (ad hoc connection) data in transit on the CAN-BUS network . By means of a standard connector OBD embedded in our modules they can be connected directly to the socket of the car devoted to the diagnostics of the operating parameters.

WLAN protocol, configuration functionality and networking stack are implemented in embedded firmware.

A high speed serial interface (USDB ®) is present on WIICOM modules that is a physical way to connect CAN BUS, through OBD or OBD2 connector, for automotive industries. WIICOM modules can can be used as CAN Analyzer on Wi-Fi.

The important thing is that the electronic devices on board vehicle don’t need modifications at the software to communicate in wifi through WIICOM embedded modules:

NO SOFTWARE NEEDED.

Success stories in Automotive
Related Wi-Fi modules

Title of application Description

Control and monitoring on an automotive Canbus network (CANBUS) A Compact-S-CAN has been integrated into an automotive control unit to check and control some parameters over a CAN-Bus network (testing in progress). A system integrator is developing a tablet application and a management software to store all data from the ECU and to evaluate some working parameters.

Control and data transmission on CLOUD of a weighing system (UART) Our Compact-CS could be installed in a weighing system on board an industrial vehicle to transmit data to a cloud system. First it makes the vehicle connect automatically to the network when it's near an area equipped for weighing. On the other hand cloud system is located in internet.

Control and monitoring on an automotive Canbus network on electri vehicle (CANBUS) A PWR-F-CAN-B has been integrated on electric vehicle to detect the operating parameters of the batteries to recharge them. The user developed APP for Personal Device (tablet and smartphone).

Planning, control and monitoring of a tracking system on vehicle (UART) On fleet management system, our module (UART) has been integrated on the control unit of localization on board a vehicle. The Wi-Fi communication is exploited for the programming, control and monitoring unit.

Wi-Fi Modules Image Description

PWR-F-CAN-S
PWR-F-CAN-S is a server type Wi-Fi embedded module equipped with a CAN-Bus transceiver, in order to be connected to a Can Bus host machine of a vehicle. All data read from CAN Bus network will be available on Wi-Fi in native messages or in an open format XML or CSV, for a better integration into customer own software like mobile and web applications. The module is equipped with a board that contains a power supply (voltage between 6 and 28Vdc).

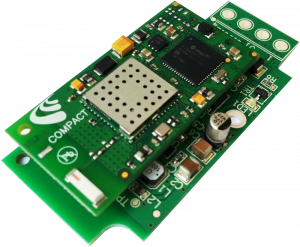

Compact-CS-CAN Compact-CS-CAN is plug-and-play embedded Wi-Fi module with CAN-bus interface without transceiver. It has to be used in association with the customer CAN transceiver and its capable drive signals up to High-Speed mode. All data read from CAN Bus network will be available on Wi-Fi in a open format XML or CSV, for a better integration into customer own software like mobile and web applications.

PWR-F-CAN-CS PWR-F-CAN-CS is a client / server type Wi-Fi embedded module equipped with a CAN-Bus transceiver, in order to be connected to a Can Bus host machine of a vehicle. All data read from CAN Bus network will be available on Wi-Fi in native messages or in an open format XML or CSV, for a better integration into customer own software like mobile and web applications. The module is equipped with a board that contains a power supply (voltage between 6 and 28Vdc).

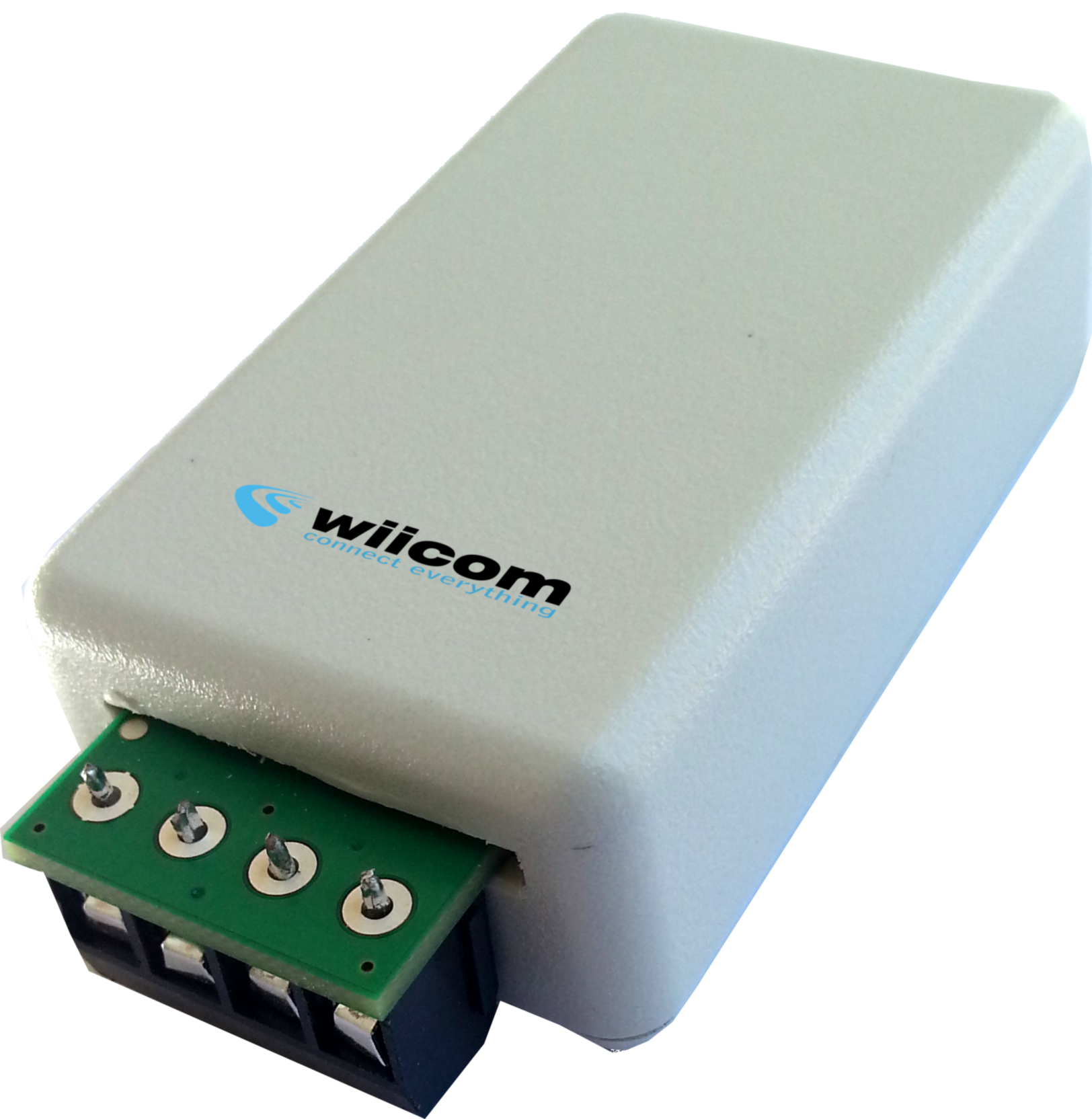

PWR-F-CAN-B PWR-F-CAN-B is a client/server type Wi-Fi boxed module equipped with a CAN-Bus transceiver, in order to be connected to a Can Bus host machine of a vehicle. All data read from CAN Bus network will be available on Wi-Fi in a open format XML or CSV, for a better integration into customer own software like mobile and web applications. The module is equipped with a board that contains a power supply (voltage between 6 and 28Vdc).
